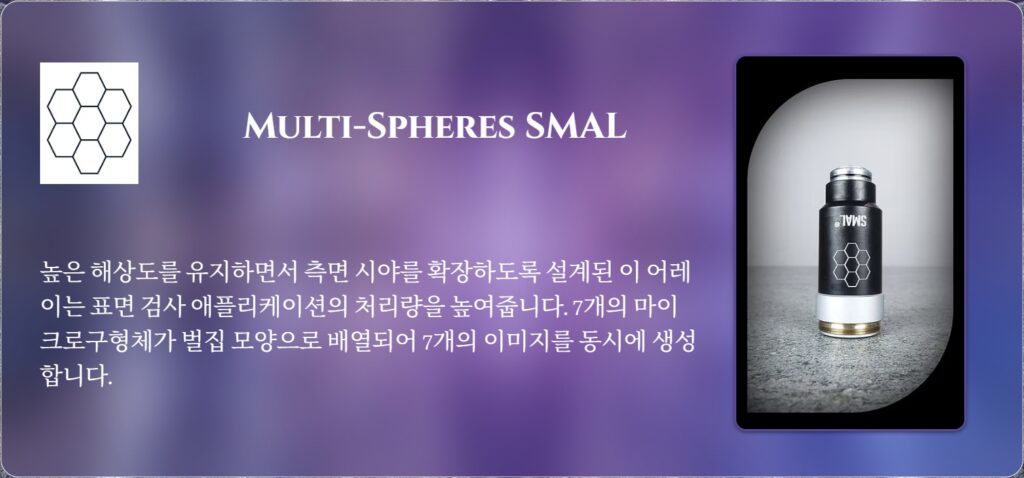

Multi-Spheres SMAL
SPECIFICATIONS

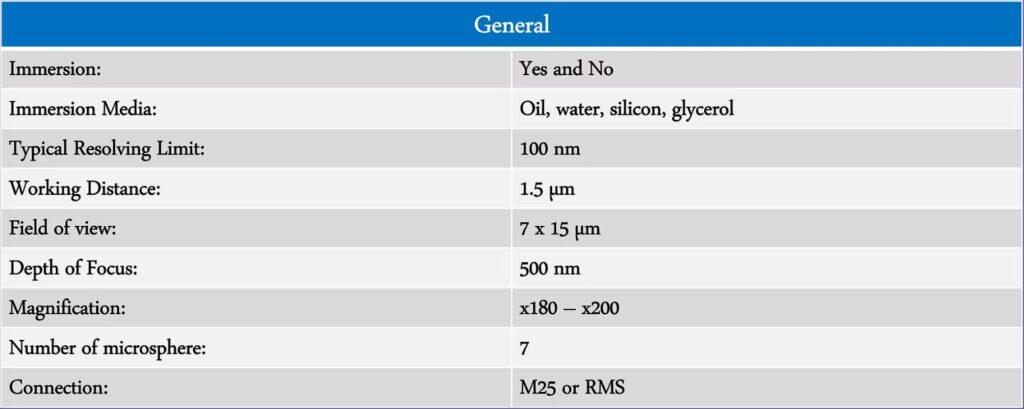

| General | |
|---|---|
| Immersion | Yes and No |
| Immersion Media | Oil, water, silicon, glycerol |
| Typical Resolving Limit | 100 nm |
| Working Distance | 1.5 μm |
| Field of View | 7 x 15 μm |
| Depth of Focus | 500 nm |
| Magnification | ×180 – ×200 |
| Number of Microsphere | 7 |
| Connection | M25 or RMS |

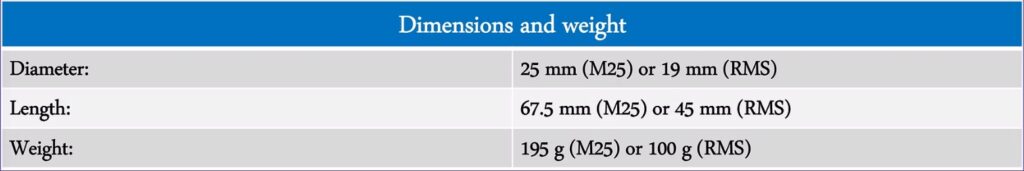

| Dimensions and weight | |
|---|---|
| Diameter | 25 mm (M25) or 19 mm (RMS) |
| Length | 67.5 mm (M25) or 45 mm (RMS) |
| Weight | 195 g (M25) or 100 g (RMS) |
